Isımsan has set new standards in the field of dust removal with the rotation wing dust filter system. This dust filter system has been developed for universal use. It can be used in parallel with industrial production processes. High quality workmanship and a highly efficient cleaning system exceed the requirements of legal regulations.

The dust filter system is produced in two dimensions. However, customer customizations can also be made if necessary. Call us for your customized solutions!

Applications:

Foods, animal feeds, fertilizers, chemicals, pharmaceuticals, construction materials, etc.

Design features

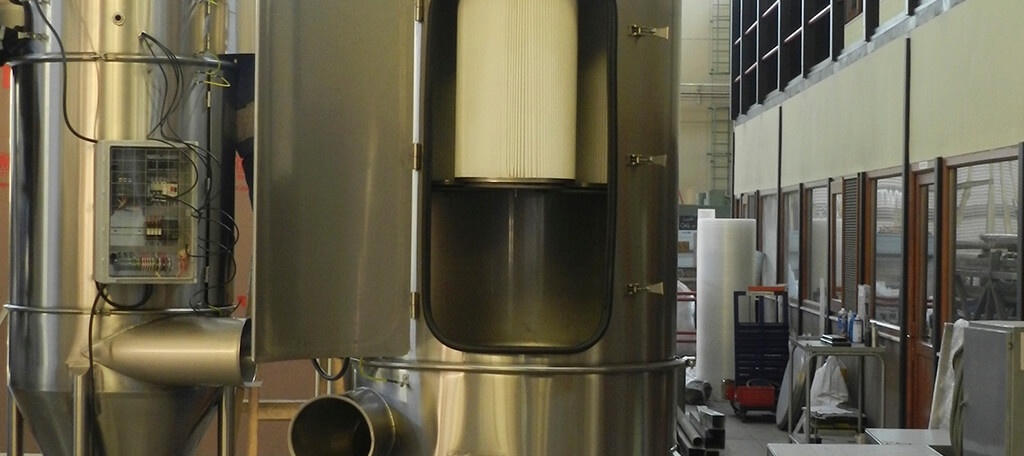

The rotary-mechanism filtration system has a dust filter that moves cylindrically downwards. The system is produced in 2 dimensions as standard. Stainless steel is used as material.

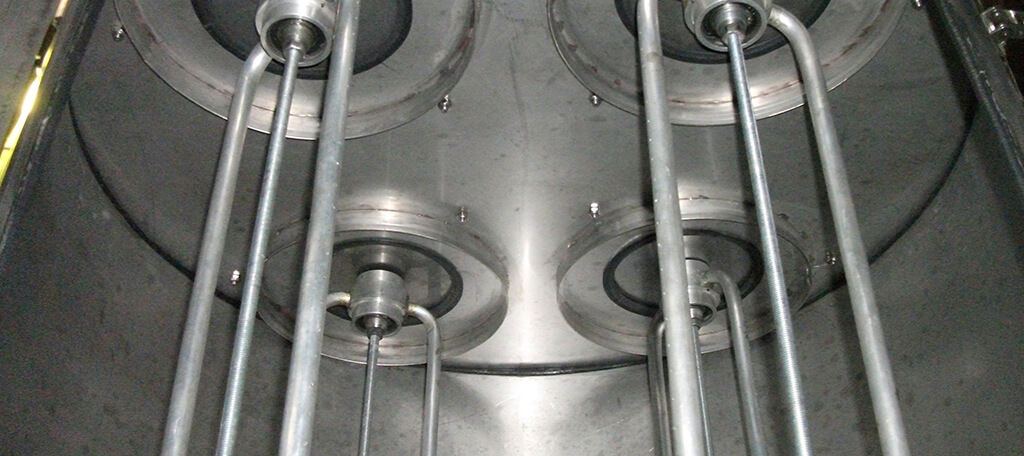

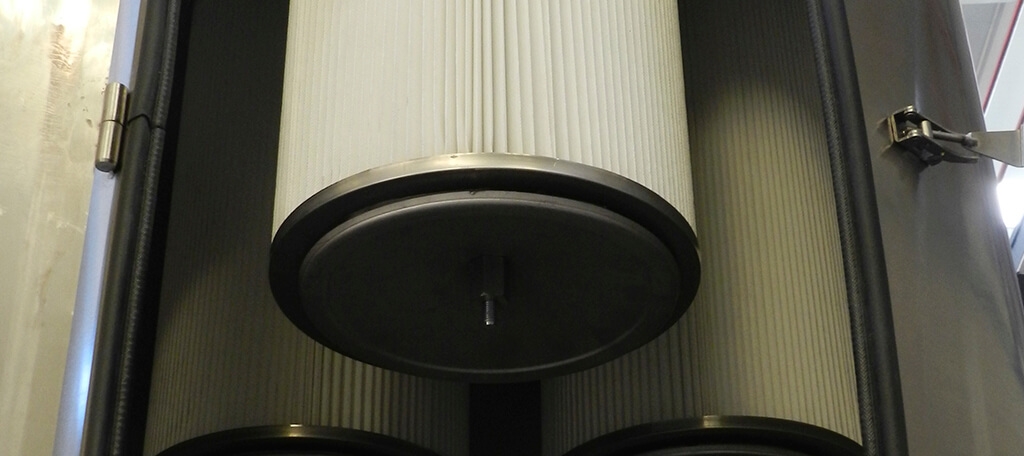

The most important part of the cylindrical system is a pressurized air rotary cleaning mechanism. This highly efficient and noiseless cleaning system consists of rotary mechanisms rotating in the dust filter and purifying the dust in the filter diaphragms through compressed air.

Design

Body shape : cylindrical / conical
Material : stainless steel
Surface : brushed, polished, mirror polished
Dimensions in cm : B 98 H 340 or B 104 H 360
Air flow : 2.500 - 4.000 m³/h
Air speed : 33m/s
Min. Particle size : 0,02 mm

Optional parts

  • Various automation sensors
  • Automatic unloading system
  • Remote control

PRODUCT OFFER REQUEST FORM

Online Product Inquiry For your individual product solution we gladly take a first draft including price calculation. You will receive this within a few days. Please use our online product inquiry or contact us directly.

Isımsan - We are there for you

Isımsan manufactures plants individually and according to the following International directives and regulations:

  • CE 2006/42/EG (Machinery Directive)
  • CE 2014/29/EU (Pressure vessel directive)
  • CE 2014/68/EU (Pressure vessel directive)
  • ATEX product line 2014/34/EU
  • EHEDG (European Hygienic Engineering and Design Group)
  • GMP (Good Manufactuning Practise)
  • FDA (U.S. Food & Drug Administration)
  • EAC (EurAsia Conformity)

Further guidelines can be considered after consultation.
Isımsan is certified in terms of quality management (ISO 9001), environmental standards (ISO 14001), welding technology and supervision (ISO 3834 & 14731) and control technology (2006/42/EC).
