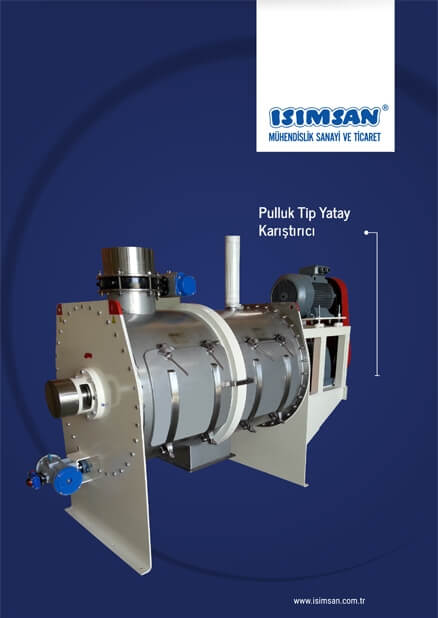

The plough shear mixer is used especially for the production and processing of granular, dust and paste-like materials. It stands out with its protective and precise mixing processes. The very good circulation of materials allows the same processes to be replicated, especially in large batches.

The mixer normally contains one plough type mixing unit. Other blending units such as paddle type may also be used. This depends on the needs of the respective blend material. Thus the design details are always tailored to the needs of the client.

Take advantage of our experience. Call us for your customized solutions!

Mixing and laboratory testing can be done at Isımsan's own technical center.

Applications:

Construction materials, plastics, chemicals, foods, animal feeds, etc.

Design features

The plough shear mixer performs both simple and highly complex mixing processes. The agitator blades rotate in a horizontal, cylindrical drum unit connected to the agitator shaft. As a result, in the mixture, a turbulence is obtained which continuously incorporates all the product particles into the mixing process. This prevents the formation of dead spots or slow motion areas. This horizontal single shaft bulk mixer can also be equipped with cutting rotors, cooling and heating units to achieve optimum mixing results and process safety.

Design

Body size : 0.1 to 20 m³
Body shape : cylindrical
Material : carbon steel, stainless steel, wear-resistant steel, duplex steel
Surface : painted, brushed, polished, mirror polished (Ra < 0,2)
Mixer shaft : single shaft
Blades : plough, paddle, wings, etc.

Optional parts

  • Sampling valves
  • Mechanical seals
  • Heating & cooling jacket
  • Heating blades
  • High speed cutting rotors
  • Liquid dosing nozzles
  • Various automation sensors
  • Support frame & platform
  • Control panel
  • Speed control
  • Remote control
  • Weighing system
  • CIP ball
  • CE, ATEX, ...

PRODUCT OFFER REQUEST FORM

Online Product Inquiry For your individual product solution we gladly take a first draft including price calculation. You will receive this within a few days. Please use our online product inquiry or contact us directly.

Isımsan - We are there for you

Isımsan manufactures plants individually and according to the following International directives and regulations:

  • CE 2006/42/EG (Machinery Directive)
  • CE 2014/29/EU (Pressure vessel directive)
  • CE 2014/68/EU (Pressure vessel directive)
  • ATEX product line 2014/34/EU
  • EHEDG (European Hygienic Engineering and Design Group)
  • GMP (Good Manufactuning Practise)
  • FDA (U.S. Food & Drug Administration)
  • EAC (EurAsia Conformity)

Further guidelines can be considered after consultation.
Isımsan is certified in terms of quality management (ISO 9001), environmental standards (ISO 14001), welding technology and supervision (ISO 3834 & 14731) and control technology (2006/42/EC).
