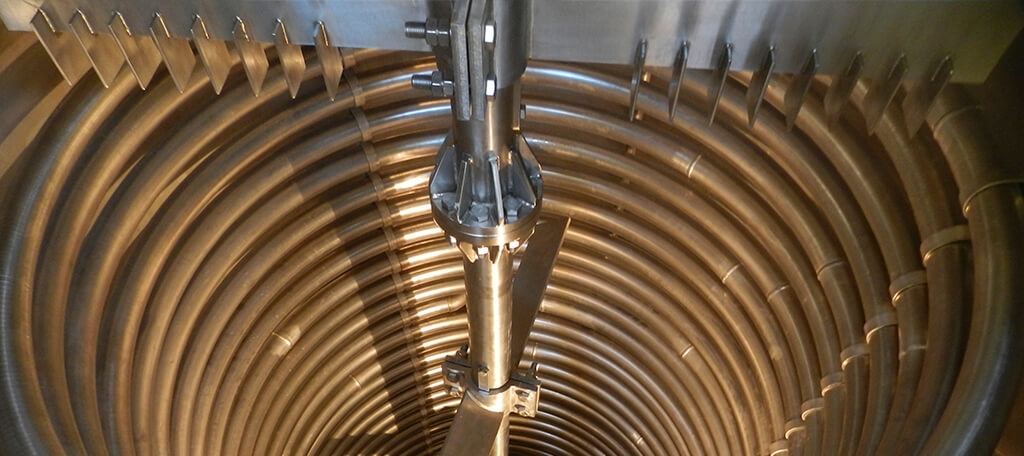

Vertical mixer (shaving foam) with inner serpentine heating system

Mixer for liquids

Vertical mixer (shaving foam) with inner serpentine heating system

Mixer for liquids

Vertical mixer (shaving foam) with inner serpentine heating system

Mixer for liquids

Alkyd resin mixer with heating jacket

Mixer for liquids

Alkyd resin mixer with heating jacket

Mixer for liquids

Vertical inclined blade mixer with heating jacket

Mixer for liquids

Vertical inclined blade mixer with heating jacket

Mixer for liquids

Bitumen mixer with heating jacket

Mixer for liquids

Bitumen mixer with heating jacket

Contact


ISIMSAN

SALES

+90 (0) 232 - 877 05 82

Offer Form

Liquids Mixer are almost used in the whole industrial production processes.

Normally these products consist of a mixing body with a vertical or horizontal shaft, optionally cylindrical and / or conical shape.

The criteria for choosing the right design are now far beyond purely functional features. The only decisive factor for the quality of Liquids Mixers is not the basic suitability for the process. First of all, attention should be paid to design details that are important for hygiene standards, easy cleanability and rapid adaptability to products with different production conditions.

Thus, design and production are always carried out exclusively by the customer.

Take advantage of our experience. Call us for your customized solutions!

Mixing performance and laboratory tests can be done at Isımsan's own technical center.

Applications:

Foods, chemicals, pharmaceuticals, construction materials, etc.

Design features

The mixer has a mixer shaft in the center. On this shaft there are one or more consecutive wings. The drive of the agitator shaft is carried out through a gearmotor mounted on the top. In addition, the mixer shaft seal is provided with pad in case of atmospheric pressure conditions. The mixer can be equipped with baffle equipment. A manhole fitted above the lids allows the inside to be checked and cleaned. The upper part has connection flanges for gravimetric or pneumatic filling. The mixed product is discharged from the discharge flange.

Mixer specifications according to viscosity range

Viscosity range 1 : < 500 mPa*s  - e.g. acetone (20°C), water (20°C), olive oil (40°C)
Body size : 0.1 to 10 m3 (with circulation line up to 60m3)
Blades : impeller, inclined blade turbine, disc, etc.
Rpm : 150 - 700
Viscosity range 2 : 500 - 5.000 mPa*s - e.g. liquid wax (60 - 90°C), pudding (40°C), glycerin (20°C), shampoo (20°C)
Body size : 0.1 to 50 m3
Blades : cross bar, grid, wing, etc.
Rpm : 30 - 120
Viscosity range 3 : 5.000 - 50.000 mPa*s - e.g. honey (20°C), butter (40°C) or toothpaste (40°C)
Body size : 0.1 to 3 m3
Blades : helix, anchor, paddle, etc.
Rpm : 30 - 60

Design

Body shape : cylindrical, conical
Base shape : flat, dished
Material : carbon steel, stainless steel, duplex steel, nickel alloy
Surface : painted, brushed, mirror polished
Mixer shaft : single shaft

Optional parts

  • Sampling valve
  • Mechanical seals
  • Isolation
  • Heating and cooling jacket
  • Body manufactured as single or double walled (process dependent) model
  • Inerserpentine cooling and heating system
  • Various automation sensors
  • Eyeglass with lighting
  • Support frame and platform
  • Speed control
  • Remote Control
  • etc.

PRODUCT OFFER REQUEST FORM

Online Product Inquiry For your individual product solution we gladly take a first draft including price calculation. You will receive this within a few days. Please use our online product inquiry or contact us directly.

Isımsan - We are there for you

Isımsan manufactures plants individually and according to the following International directives and regulations:

  • CE 2006/42/EG (Machinery Directive)
  • CE 2014/29/EU (Pressure vessel directive)
  • CE 2014/68/EU (Pressure vessel directive)
  • ATEX product line 2014/34/EU
  • EHEDG (European Hygienic Engineering and Design Group)
  • GMP (Good Manufactuning Practise)
  • FDA (U.S. Food & Drug Administration)
  • EAC (EurAsia Conformity)

Further guidelines can be considered after consultation.
Isımsan is certified in terms of quality management (ISO 9001), environmental standards (ISO 14001), welding technology and supervision (ISO 3834 & 14731) and control technology (2006/42/EC).
