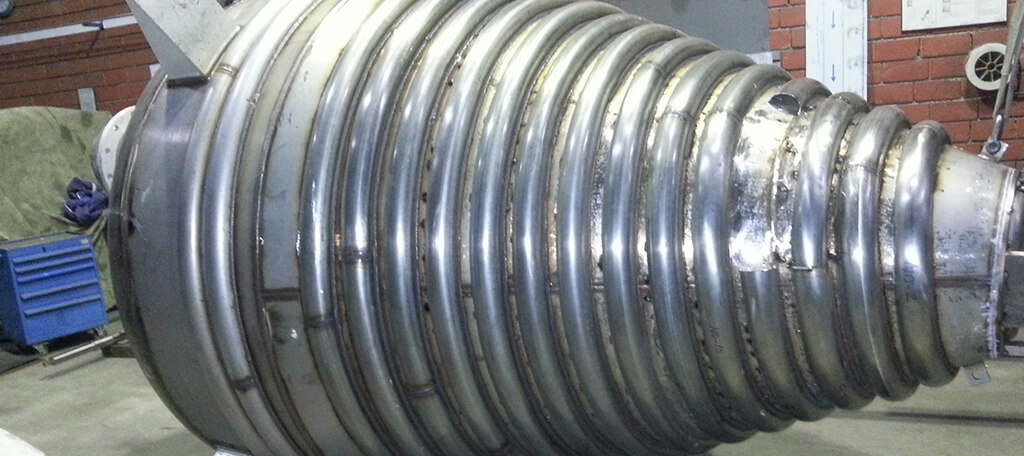

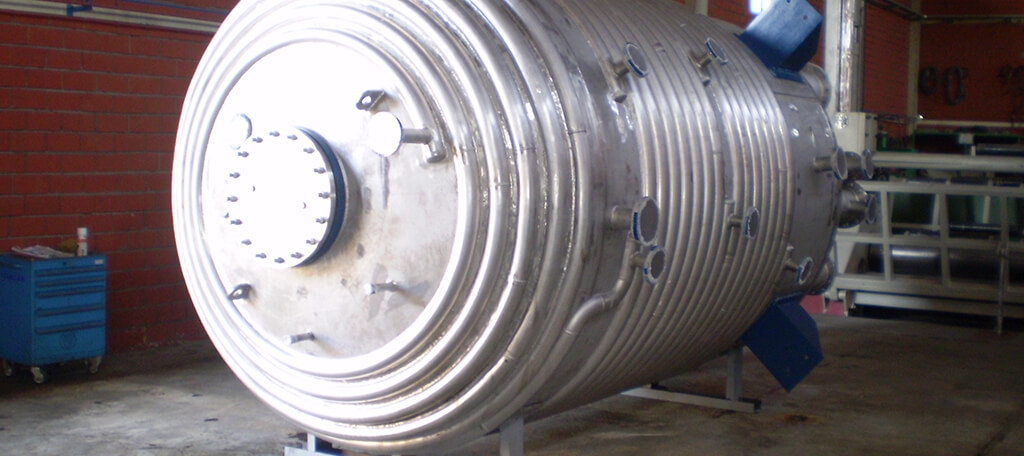

Vertical reactor with heating jacket

Mixing reactor for liquids

Vertical reactor with heating jacket

Mixing reactor for liquids

Vertical reactor with heating jacket

Mixing reactor for liquids

Vertical reactor with heating jacket

Mixing reactor for liquids

Vertical reactor with heating jacket

Mixing reactor for liquids

Vertical reactor with heating jacket

Mixing reactor for liquids

Vertical reactor with heating jacket

Mixing reactor for liquids

Vertical reactor with heating jacket

Mixing reactor for liquids

Vertical reactor with heating jacket

Mixing reactor for liquids

Vertical reactor with heating jacket

Mixing reactor for liquids

Vertical reactor with heating jacket

Mixing reactor for liquids

Vertical reactor with heating jacket

Mixing reactor for liquids

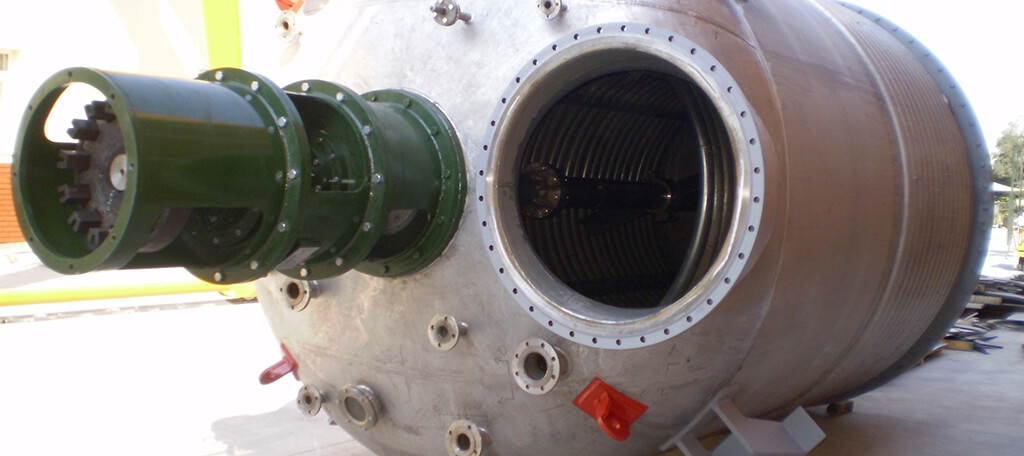

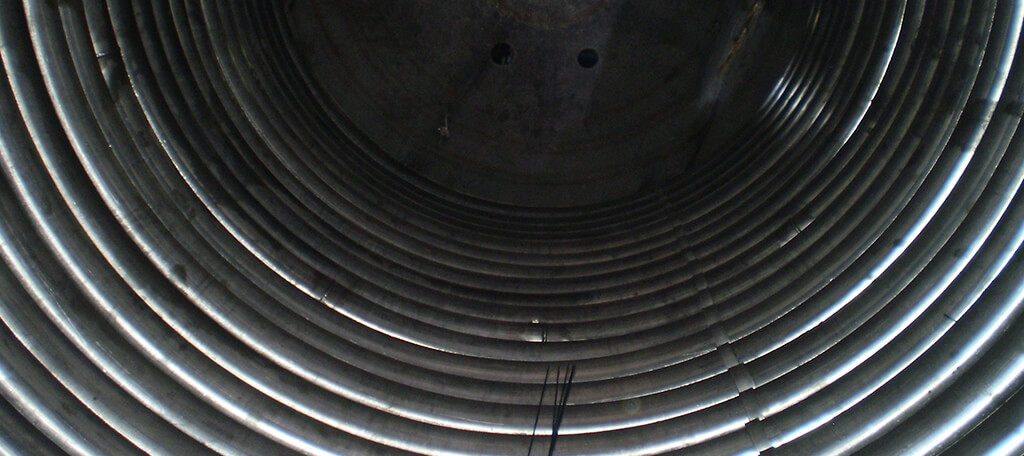

Vertical pressure reactor with inner serpentine heating

Mixing reactor for liquids

Vertical pressure reactor with inner serpentine heating

Mixing reactor for liquids

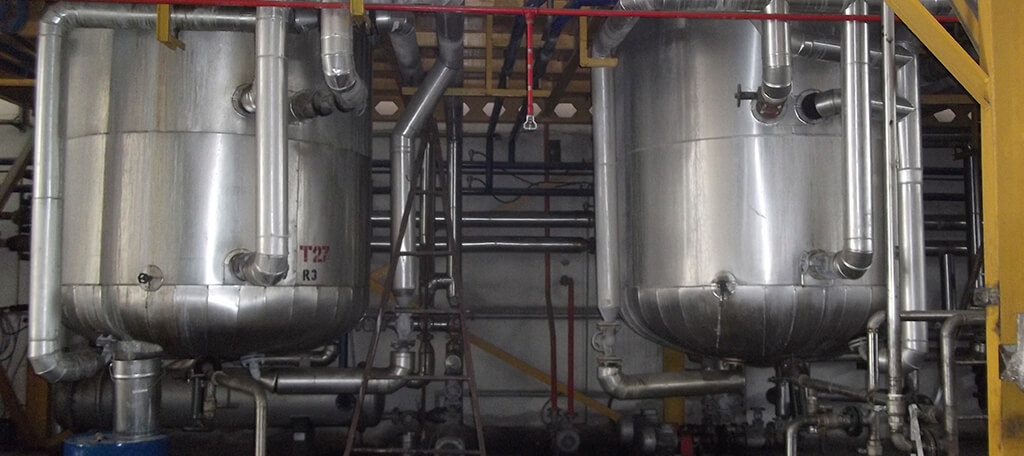

Athmospheric reactor

Mixing reactor for liquids

Athmospheric reactor

Contact


ISIMSAN

SALES

+90 (0) 232 - 877 05 82

Offer Form

With the design of mixing reactors for liquids, Isımsan combines many expertise in process technology with professional craftsmanship.

Isımsan's reactors for liquids are mixers designed for the construction and control of high temperature, pressure and vacuum processes. These processes are necessary for the reaction of different mixture materials. Therefore, to operate the reactors, the maximum level of safety and quality standards that are tailored to the customer's specific requirements shall apply.

For this reason, the design of the reactors in Isımsan is carried out specially until the smallest detail. With years of experience and precise workmanship we meet the highest customer expectations.

Mixing and laboratory testing can be done at Isımsan's own technical center.

Applications:

Foods, animal feeds, chemicals, cosmetics, pharmaceuticals, construction materials, etc.

Reactor specifications according to viscosity ranges

Viscosity range 1 : < 500 mPa*s
Body size : 0.1 to 10 m3 (with circulation line up to 60m3)
Blades : impeller, inclined wing turbine, disc, etc.
Rpm : 150 - 700
Viscosity range 2 : 500 - 5.000 mPa*s
Body size : 0,1 to 50 m3
Blades : crossbar, grid, wing, MIG, etc.
Rpm : 30 - 120
Viscosity range 3 : 5.000 - 50.000 mPa*s
Body size : 0,1 to 3 m3
Blades : helix, anchor, paddle, etc.
Rpm : 30 - 60

Design

Body shape : cylindrical, conical
Base shape : flat, dished
Material : carbon steel, stainless steel, duplex steel, nickel alloy
Surface : painted, brushed, mirror polished

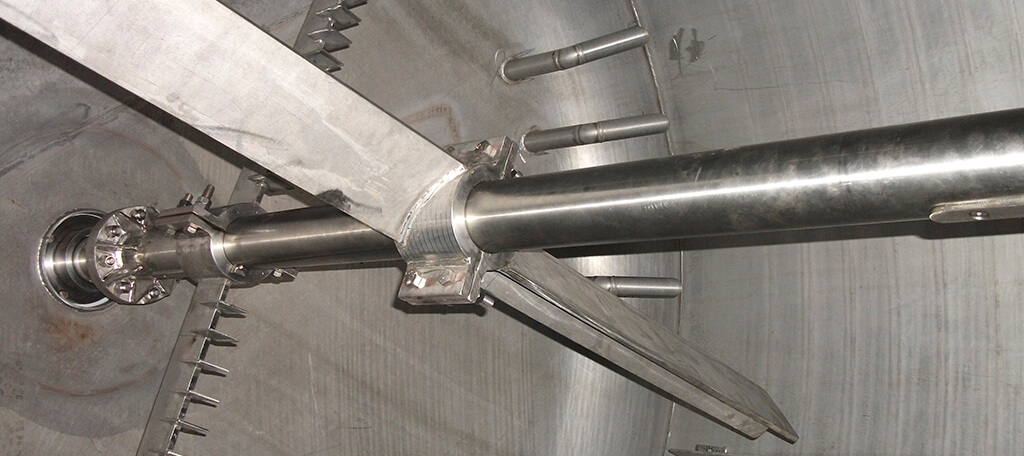

Mixer shaft : single shaft
Body material thickness : up to 40 mm (may be higher upon request)
Pressure max. : 25 bar (may be higher upon request)
Vacuum generation : process dependent, pump (up to 730 mmHg), ejector (up to 758 mmHg)
Vacuum max. : 760 mmHg
Thickness top cover : up to 50 mm (may be higher upon request)

Optional parts

  • Sampling valves
  • Mechanical seals
  • Heating and cooling jacket
  • Heating and cooling inerserpentine
  • Various automation sensors
  • Eyeglass with lighting
  • Support frame and platform
  • Speed control
  • Remote control
  • etc.

PRODUCT OFFER REQUEST FORM

Online Product Inquiry For your individual product solution we gladly take a first draft including price calculation. You will receive this within a few days. Please use our online product inquiry or contact us directly.

Isımsan - We are there for you

Isımsan manufactures plants individually and according to the following International directives and regulations:

  • CE 2006/42/EG (Machinery Directive)
  • CE 2014/29/EU (Pressure vessel directive)
  • CE 2014/68/EU (Pressure vessel directive)
  • ATEX product line 2014/34/EU
  • EHEDG (European Hygienic Engineering and Design Group)
  • GMP (Good Manufactuning Practise)
  • FDA (U.S. Food & Drug Administration)
  • EAC (EurAsia Conformity)

Further guidelines can be considered after consultation.
Isımsan is certified in terms of quality management (ISO 9001), environmental standards (ISO 14001), welding technology and supervision (ISO 3834 & 14731) and control technology (2006/42/EC).
