DEODORIZATION REACTOR

Deodorization reactor

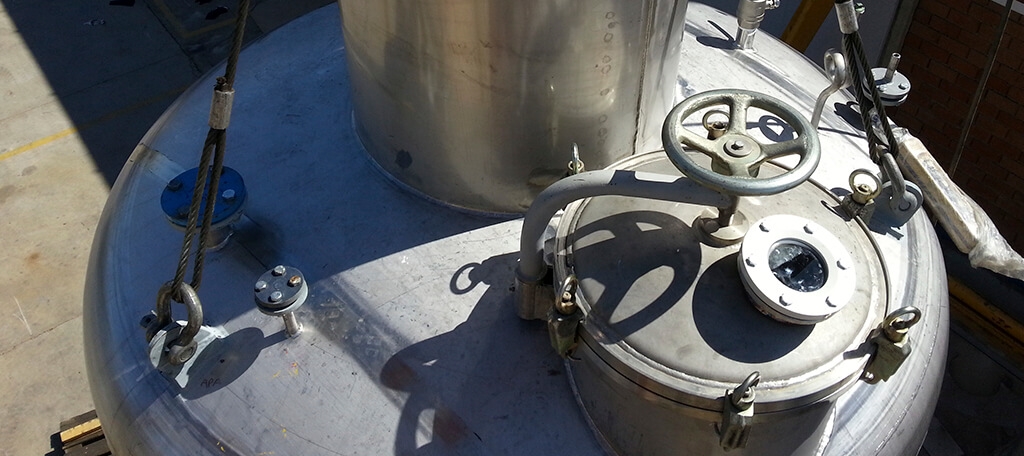

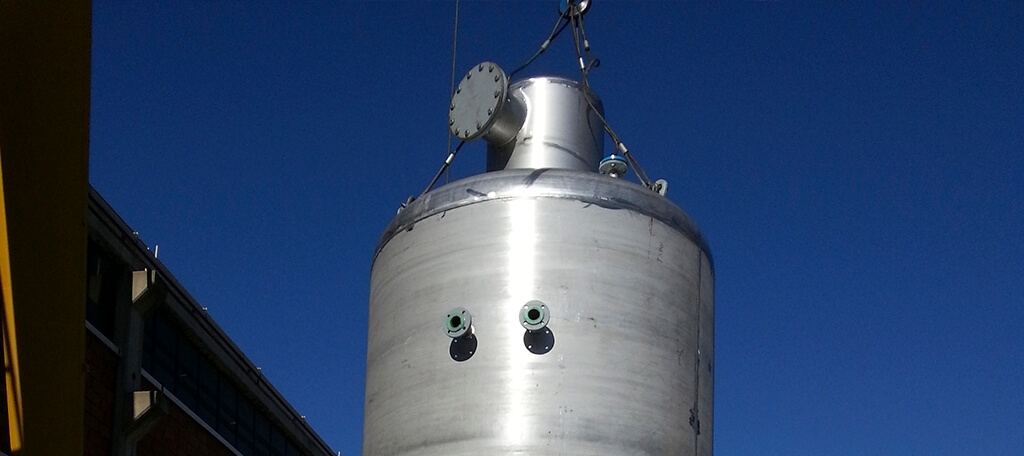

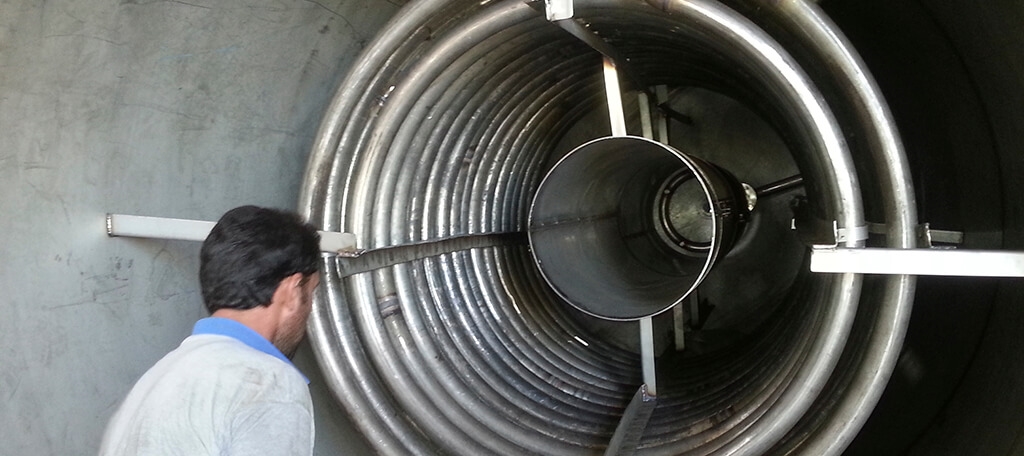

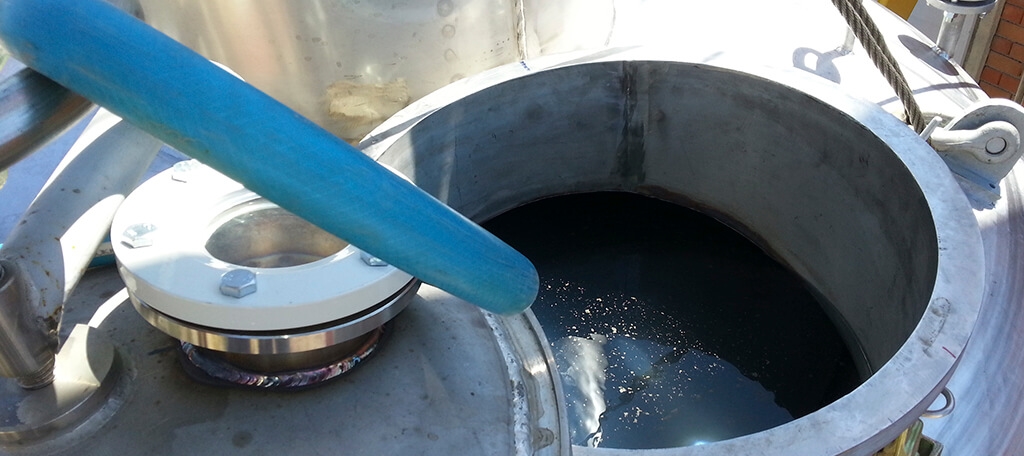

Vertical deodorization reactor (paraffin), 13 m3 with inner serpentine heating system

Deodorization reactor

Vertical deodorization reactor (paraffin), 13 m3 with inner serpentine heating system

Deodorization reactor

Vertical deodorization reactor (paraffin), 13 m3 with inner serpentine heating system

Deodorization reactor

Vertical deodorization reactor (paraffin), 13 m3 with inner serpentine heating system

Contact


ISIMSAN

SALES

+90 (0) 232 - 877 05 82

Offer Form

Deodorization is a purification process that cleans up odors and sweeteners in vegetable and animal oils. In chemical treatment, odor and flavor complements such as carbonyl compounds, hydrocarbons and free fatty acids in oil, as well as volatile compounds and pesticides, are cleaned by means of the application of air and vacuum. For this, steam is injected into the oil which is dried and heated to 200 °C. Since this process requires 8 to 12 kilogram of water vapor per ton of oil, the process takes 20 to 60 minutes and consumes high energy. Deodorization in physical treatment is similarly performed in many steps, including distillative acid removal. The high temperatures at the end of the odor reduce the positive tocopherols in terms of nutrients and the amount of certain desired particles in the oil.

In this field, Isımsan develops solutions that enable a protective oil treatment through variable processing temperatures in a complex vacuum process. The design is tailored to the specific needs of the customer. Thus, we can integrate special design systems into your factory.

For detailed information, we are ready to answer your questions.

Applications:

Foods, chemicals


PRODUCT OFFER REQUEST FORM

Online Product Inquiry For your individual product solution we gladly take a first draft including price calculation. You will receive this within a few days. Please use our online product inquiry or contact us directly.

Isımsan - We are there for you

Isımsan manufactures plants individually and according to the following International directives and regulations:

  • CE 2006/42/EG (Machinery Directive)
  • CE 2014/29/EU (Pressure vessel directive)
  • CE 2014/68/EU (Pressure vessel directive)
  • ATEX product line 2014/34/EU
  • EHEDG (European Hygienic Engineering and Design Group)
  • GMP (Good Manufactuning Practise)
  • FDA (U.S. Food & Drug Administration)
  • EAC (EurAsia Conformity)

Further guidelines can be considered after consultation.
Isımsan is certified in terms of quality management (ISO 9001), environmental standards (ISO 14001), welding technology and supervision (ISO 3834 & 14731) and control technology (2006/42/EC).
